Carbon Dioxide Filling Station

Product Overview

The CO₂ filling station is an industrial system specifically designed for the safe and efficient filling of liquid carbon dioxide. It enables precise filling of liquid CO₂ into various containers, including cylinders and storage tanks, meeting the diverse gas supply needs of industries such as food and beverage, fire protection, and welding.

The system stores liquid CO₂ in low-temperature, high-pressure storage tanks and integrates precision filling pumps, vaporizers, and weighing monitoring systems to ensure safe, stable, and high-accuracy filling operations.

Working Principle

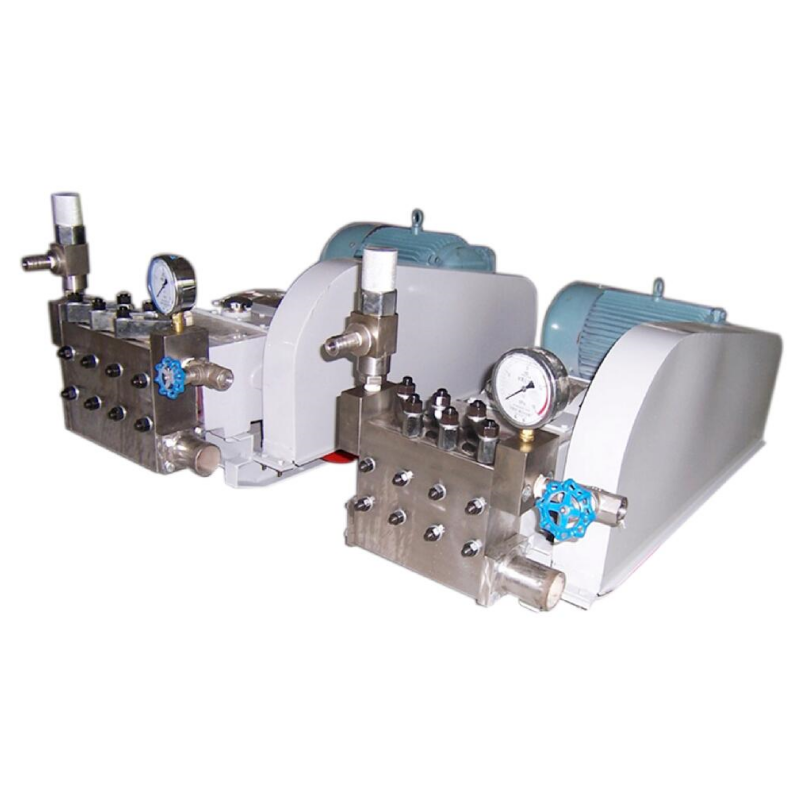

The system utilizes the low-temperature, high-pressure state of liquid CO₂ stored in the tank. A filling pump transfers the liquid CO₂ into target containers. The pump can be either plunger-type or diaphragm-type, with flow rates ranging from several liters per minute to tens of liters per minute and pressures up to 10-20 MPa, ensuring smooth filling operations.

Liquid CO₂ can also be vaporized in a vaporizer to produce gaseous CO₂ for applications requiring gas supply. During the filling process, a weighing system continuously monitors the filling quantity to ensure accuracy and consistency.

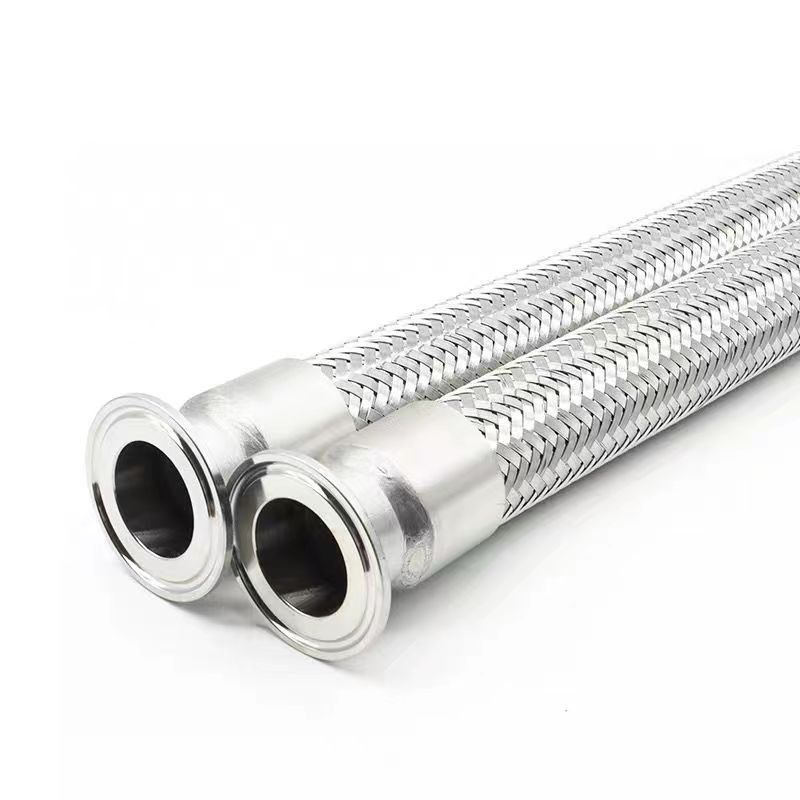

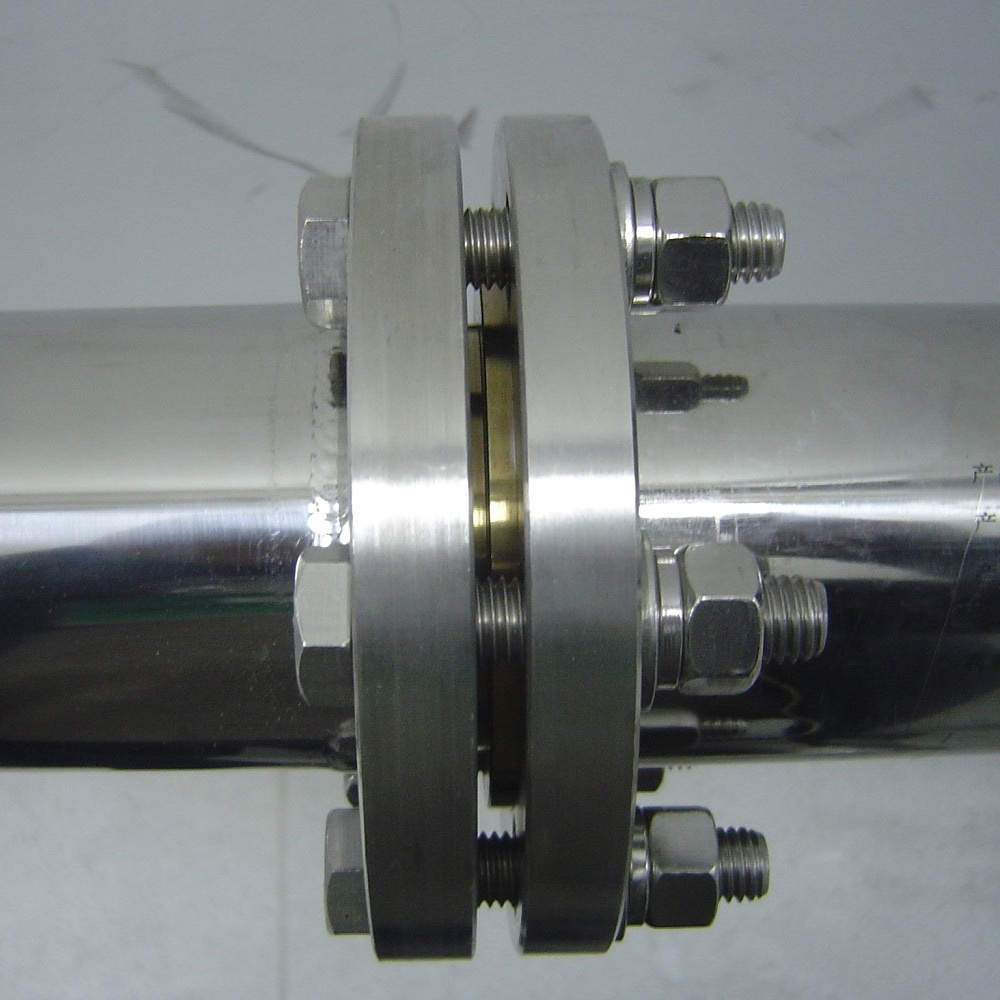

All pipelines and valves are made of stainless steel, offering excellent corrosion resistance and sealing performance, ensuring safe operation under cryogenic and high-pressure conditions.

Product Features

• Large-Capacity Storage Tanks:Liquid CO₂ storage tanks range from tens to hundreds of cubic meters and are equipped with insulation layers to significantly reduce evaporation losses.
• Precise Filling Control:Adjustable pump flow and pressures up to 10–20 MPa, combined with high-precision weighing systems, ensure accurate control of each filling operation.
• Efficient Vaporization:Optional air-heated or water-bath vaporizers provide gaseous CO₂ as required for different applications.
• Durable and Safe Design:Stainless steel pipelines and valves offer high sealing performance and corrosion resistance, ensuring safe and reliable operation under demanding conditions.
• Real-Time Monitoring:Weighing systems and pipeline controls enable continuous monitoring of the filling process, improving operational safety and management efficiency.
• Flexible Configuration:The system can be customized according to customer requirements, allowing flexible combinations of storage tanks, pumps, vaporizers, and piping systems.

Applications

• Food & Beverage Industry:Used for liquid CO₂ filling and gas supply in carbonated beverages and other drink products.
• Fire Protection Industry:Provides high-precision liquid CO₂ filling for fire extinguishers and fire suppression systems.
• Welding Industry:Ensures stable liquid CO₂ supply for welding gas applications.
• Industrial Gas Supply:Meets the storage and distribution needs of liquid CO₂ in laboratories and industrial production.
• Scientific Research & Testing:Provides precise and controllable CO₂ filling and supply for research and testing facilities.
