Product Overview

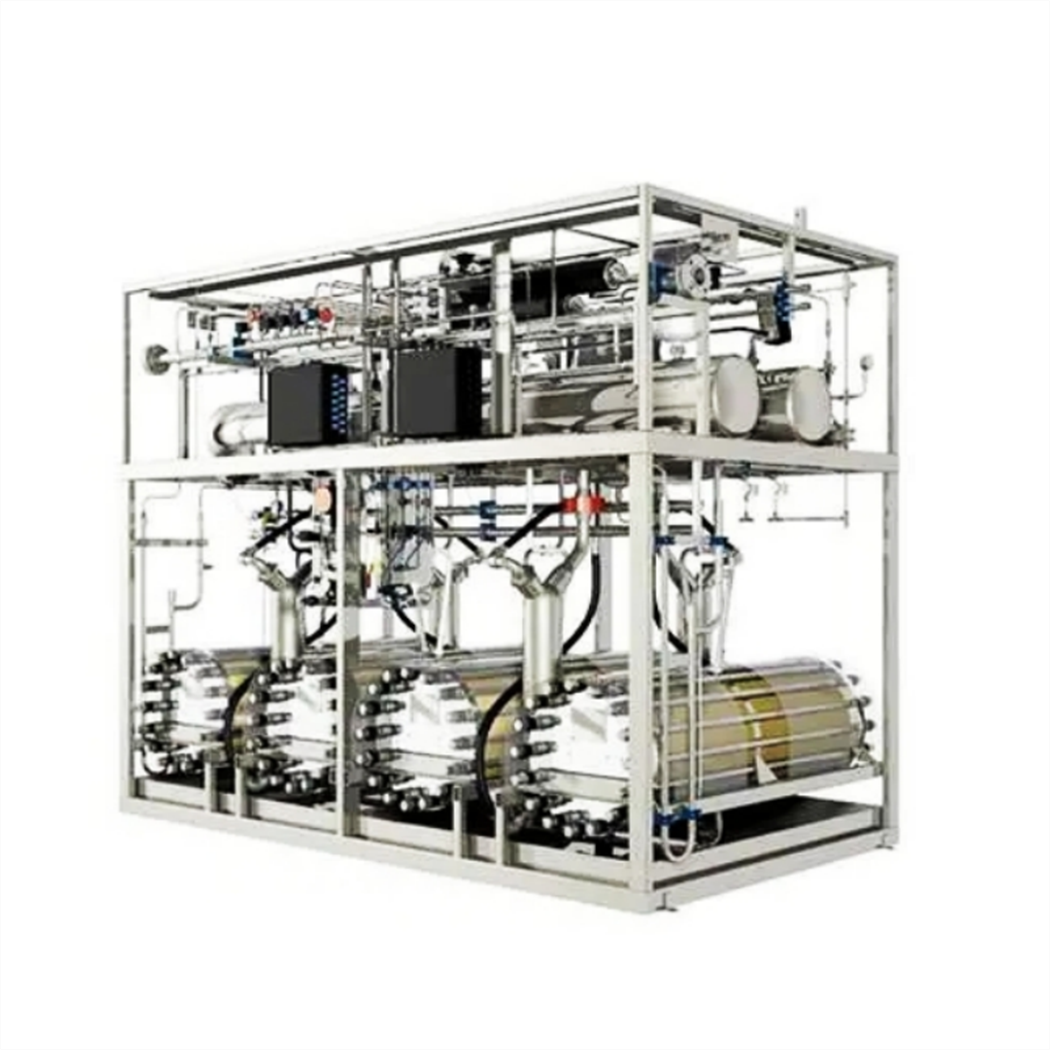

The Alkaline Water Electrolysis Hydrogen Production Equipment features a containerized design, integrating core modules such as the electrolyzer, gas-liquid separator, three-tower purification system, control cabinet, rectifier cabinet, and transformer into a standard 40-foot container. Compact and mobile, the system can be rapidly deployed with only water, electricity, and gas connections, enabling high-purity hydrogen production. The system supports a hydrogen production capacity of up to 100 Nm³/h with a hydrogen purity of 99.999%, making it suitable for industrial hydrogen production, storage, and gas supply applications.
Working Principle

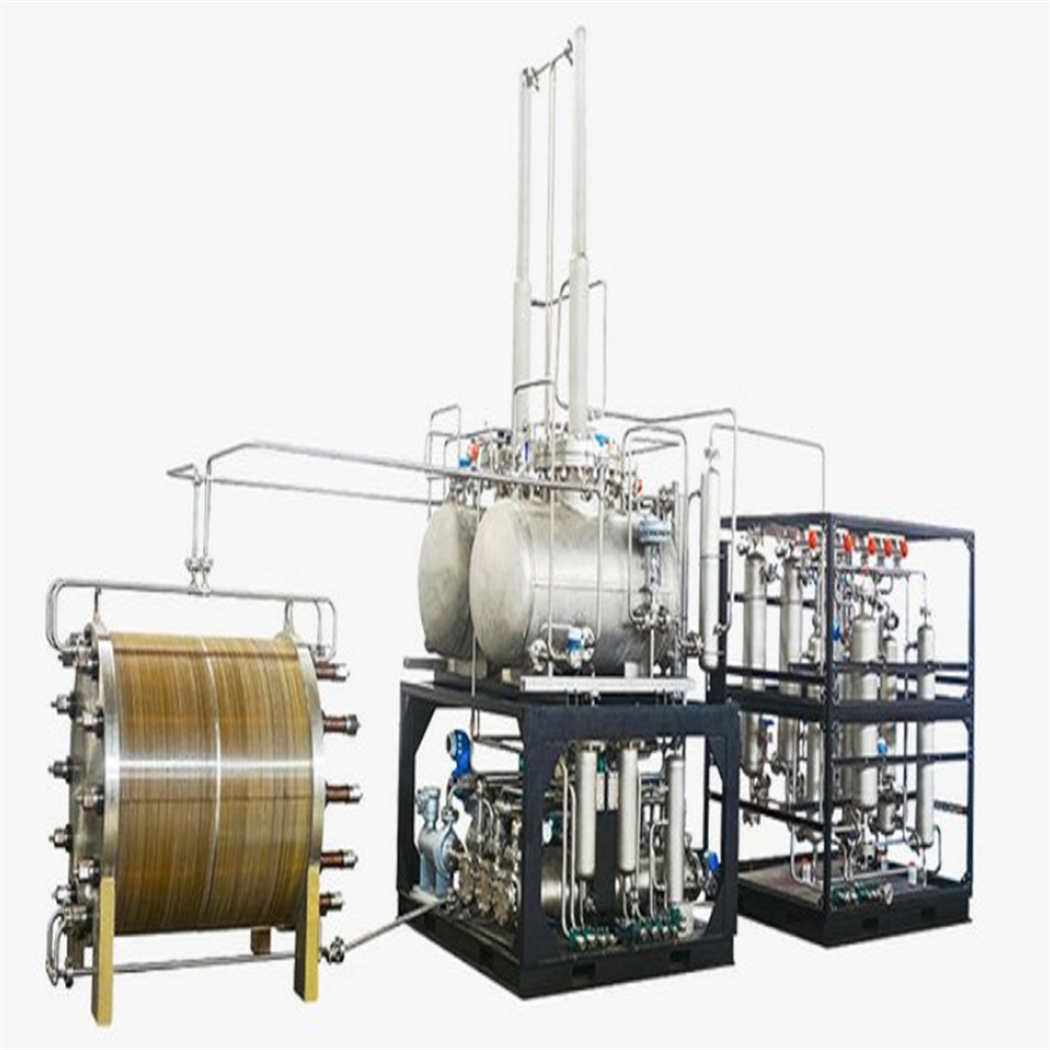

Based on alkaline water electrolysis technology, the system splits water into hydrogen and oxygen in the electrolyzer. Produced hydrogen passes through a gas-liquid separator and a three-tower purification system, further increasing purity and reducing the dew point to -70°C, ensuring high-purity hydrogen output. Integrated control systems coordinate all modules to enable automated operation, ensuring stable, efficient, and continuous hydrogen supply.
Key Features
- Containerized Integration: Electrolyzer, gas-liquid separator, purification system, and control units are all integrated into a 40-foot container for easy transportation, installation, and minimal civil construction requirements.
- High-Purity Hydrogen: Three-tower purification ensures hydrogen purity up to 99.999% with a dew point as low as -70°C.
- Rapid Deployment: Compact design allows fast commissioning; users only need to connect water, electricity, and gas.
- High Production Capacity: Hydrogen output up to 100 Nm³/h to meet large-scale industrial needs.
- Efficient and Stable Operation: Alkaline water electrolysis technology provides reliable, continuous operation for long-term applications.
Applications
- Gas Supply Companies: For high-purity hydrogen production and commercial supply.
- Industrial Hydrogen Production: Supplying stable hydrogen to chemical, electronics, and metal processing industries.
- Energy Storage and Utilization: Integrated into hydrogen storage systems and green energy applications to support energy transition.
- Research and Laboratories: Provides high-purity hydrogen for scientific experiments and research institutions.
| Model | Hydrogen Production (m³/h) | Oxygen Production (m³/h) | Hydrogen Purity Before Purification (V/V) | Oxygen Purity Before Purification (V/V) | Hydrogen Purity After Purification (V/V) | Load Range (%) | Operating Pressure (MPa) | Operating Temperature (°C) | DC Power Consumption (kW·h/m³H₂) | Hydrogen Moisture (g/m³) | Hydrogen Alkaline Content (mg/m³) | Alkaline Solution Concentration |
| AWE-5 | 5 | 2.5 | ≥99.8% | ≥99.2% | ≥99.999% | 50%-100% | 1.5~3.2 | 95±5 | ≤4.5 | ≤4 | ≤1 | 30% KOH |
| AWE-10 | 10 | 5 | 1.5~3.2 | |||||||||
| AWE-15 | 15 | 7.5 | 1.5~3.2 | |||||||||
| AWE-16 | 16 | 8 | 1.5~2.0 | |||||||||
| AWE-20 | 20 | 10 | 1.5~2.0 | |||||||||
| AWE-24 | 24 | 12 | 1.5~2.0 | |||||||||
| AWE-30 | 30 | 15 | 1.5~2.0 | |||||||||
| AWE-40 | 40 | 2O | 1.5~2.0 | |||||||||
| AWE-50 | 50 | 25 | 1.5~2.0 | |||||||||
| AWE-60 | 60 | 30 | 1.5~2.0 | |||||||||
| AWE-65 | 65 | 32.5 | 1.5~2.0 | |||||||||
| AWE-80 | 80 | 40 | 1.5~2.0 | |||||||||
| AWE-100 | 100 | 50 | 1.5~2.0 |
